Galizia G20

View technical specifications

Top Features

  • Total Machine Weight: 2000kg
  • Fully Electric
  • Max lifting height 5.3m
  • Max working radius 3.5m

or Call us on: 0844 770 6774

Specifications

Max. Capacity2.000 kg
Chassis dimensions (L x W x H)2.025 mm x 928 mm x 1.650 mm
Steering radius1.800 mm
Weight (about)2.000 kg
Telescopic boomBox boom, 1 hydraulic section, 1 manual section
Steering180° on rear axle by helm
Tyres1 solid rear, 2 solid front 18x7x8
Drive systemElectric motor wheel driven by electronic control
BrakesElectromagnetic on rear axles (front brakes optional)
Electrical option Standard
Drive Motors2 kW – 24V
Batteries24V - 320 Ah
Standard equipmentDigital safe load indicator with display ,shut-off valve, electronic control for lift system driven by proportional “roller” on helm, reversing alarm, work light, flash-light, emergency button. Industrial mobile crane, electric mobile crane

Working Range

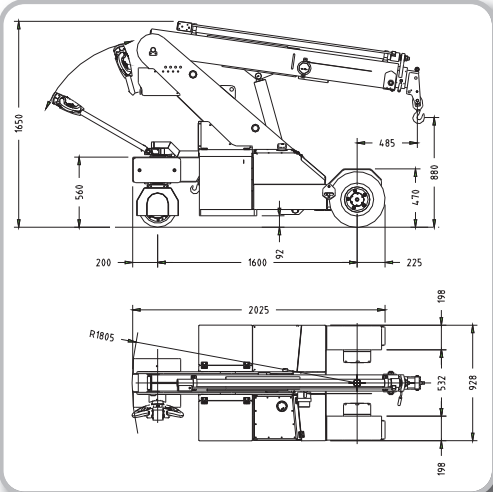

Dimensions
