Smartlift SL580

View technical specifications

Top Features

  • Lifts up to 580kg
  • Our most powerful indoor glass robot.
  • The lateral shift of up to 10 cm increases the flexibility during installation.
  • The rear-wheel drive makes the lift very manoeuvrable in tight spaces.

or Call us on: 0844 770 6774

Specifications

Lifting cap. arm in/out580/280 kg - 1,280/620 lbs.
Lifting height 2,300 mm / 96 in.
Extension of arm500 mm / 20 in.
Tip from horizontal 25o back / 105o fwd.
Side shift100 mm / 4 in
Charging voltage230 V / 110V
Charging timeApprox. 8 hrs.
Battery (2 x 12V) 2 x 80 Ah
Running periodUp to 10 hrs.
Rear wheel drive1000 W DC
BrakeElectro-magnetic
Suction pads4 x Ø400mm / 4 x Ø16 in.
Width780 mm / 31 in.
Curb weight700 kg / 1,545 lbs.

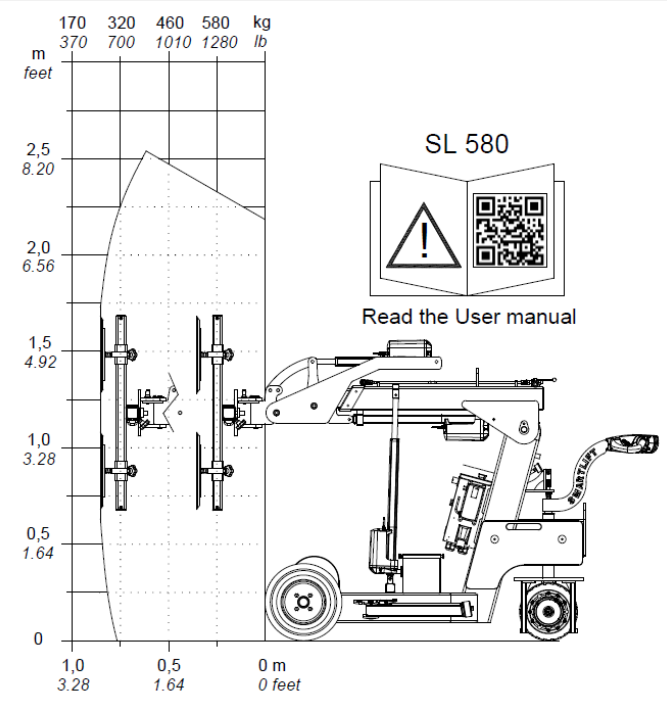

Working Range

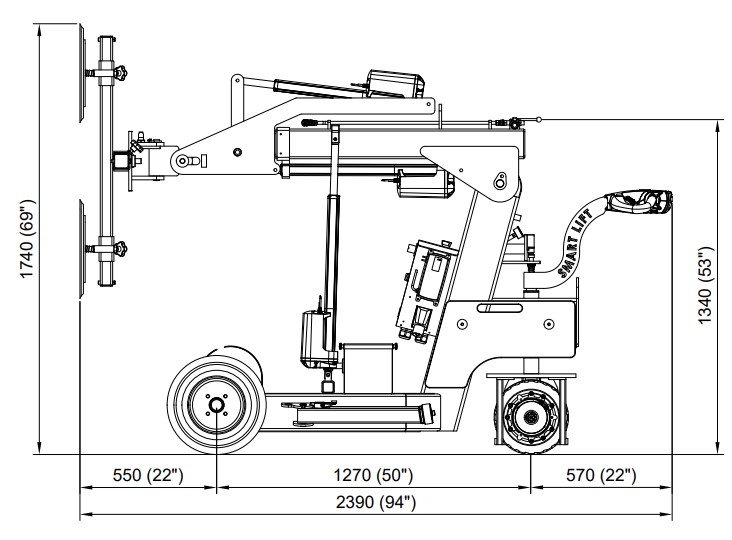

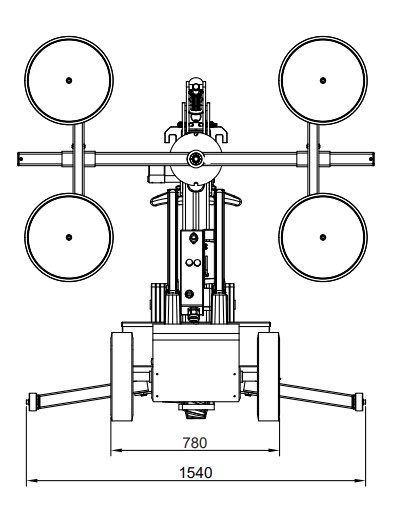

Dimensions
